15.6-inch Full HD TFT display module features a broad colour gamut and high brightness





15.6-inch Full HD TFT display module

features a broad colour gamut and high brightness



Saturated colours and high contrast display images

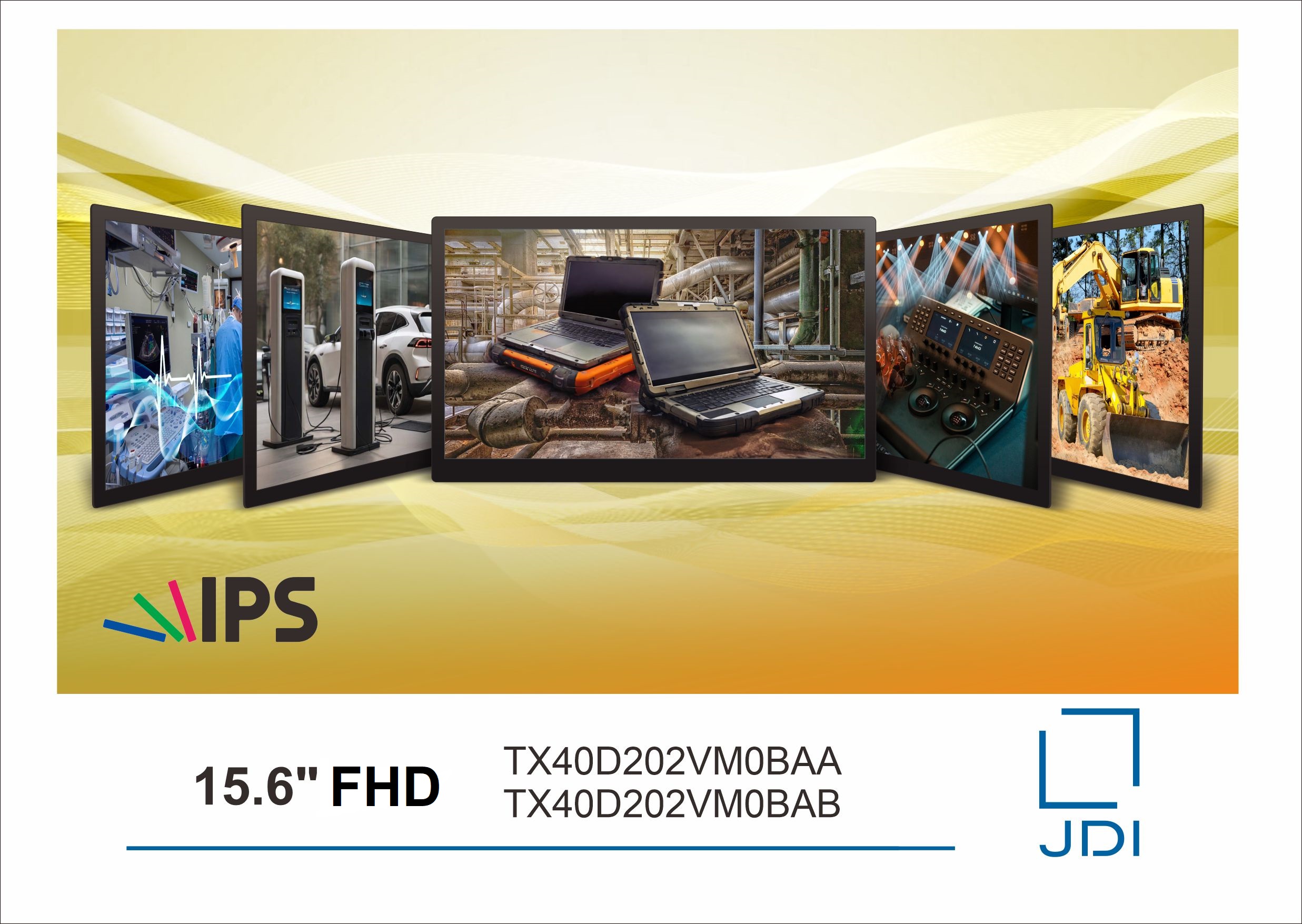

Kaohsiung, Taiwan <1st, Feb, 2024>. Industrial display manufacturer JDIT-K (JDI Taiwan Kaohsiung) has announced the introduction of a newly developed 15.6-inch industrial TFT display module. The JDIT-K TX40D202VM0BAA has Full HD (1920 x 1080 pixels) resolution, a 16:9 wide aspect ratio and features IPS (In-Plane Switching) display technology that enables exceptional colour saturation and stable image performance.



The 15-6-inch TFT display delivers exemplary colour reproduction with deeply saturated colours, highly consistent image stability, strong contrast ratios and black levels combined with 176° viewing angles in all directions (up/down, left/right). In-plane switching (IPS) technology enables a broad colour gamut of 80% NTSC to be achieved.



Display images are bright, colourful and accurate, with a contrast ratio of 1200:1 and a white LED backlight featuring a brightness specification of 1500cd/m² and a half-brightness lifetime of 70K hours. An integrated LED driver circuit allows a PWM input signal to provide easily controlled, flicker-free dimming from 0% to 100%.



Benson Huang, marketing manager, JDIT-K said, “The new 15.6-inch TFT module provides the ideal display solution for use in outdoor applications, in-vehicle systems, marine vessels and medical equipment. The optical performance and image characteristics ensure deeply saturated colours and high contrast display images can be easily viewed from all directions.”



A 50-pin data interface supports dual-channel LVDS and 8-bit RGB enabling a colour palette of up to 16.7M colours. A wide operating temperature range of -30°C to +85°C is supported. The 15.6-inch display module has external mechanical dimensions of 367.86mm (l) x 219.51mm (h) x 14.71mm (d) and an active display area of 344.16mm (l) x 193.59mm (w).



Typical applications include EV charging stations, transportation systems, medical equipment, information kiosks and rugged tablets. The new 15.6-inch TX40D202VM0BAA and TX40D202VM0BAB (available without integrated LED driver circuit) TFT display modules are now available from JDIT-K''s sales channel distribution partners.



JDIT-K is committed to ensuring long-term product availability, with continuity of supply essential for many industrial systems and equipment. The latest JDIT-K industrial-specification display modules can be sourced and supplied for a minimum of 5 years.
